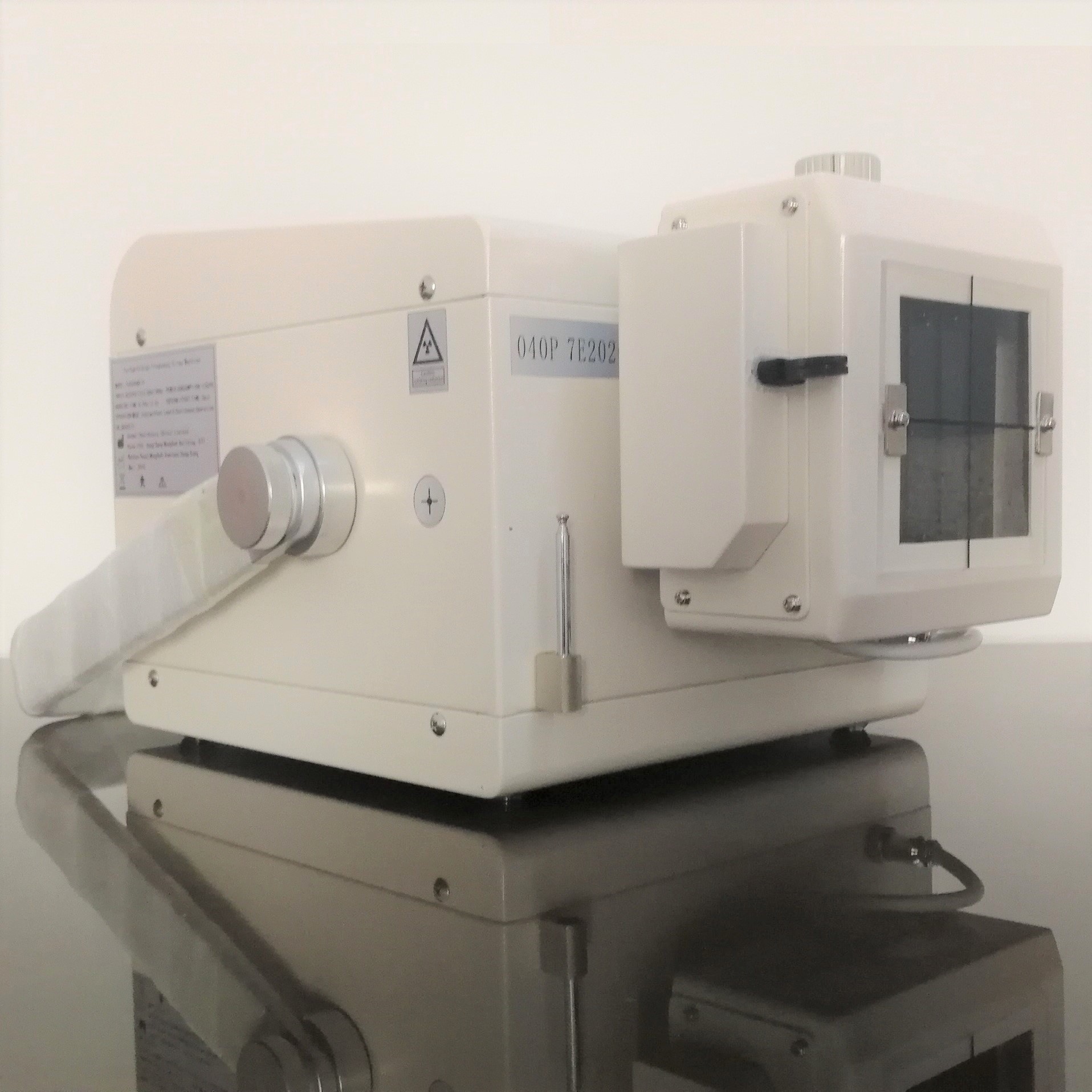

Technical Specification of Portable High Frequency X-ray Machine
Applicable scope:
4 kW digital portable high frequency x ray machine for medical diagnosis, use for human limbs checking, diagnosing, especially used in the wild flow places, battlefield, playground, pet clinic, rescue diagnosis etc.
Characteristics:
|
Model |
PX60 |
|
Input power |
Voltage: AC220V ± 22V, frequency: 50/60 Hz±1Hz;
Power capacity: ≥5kVA; Inner resistance≤0.5Ω |
|
Maximum output power |
P =110kV×36mA=4kW |
|
Nominal power |
100kV，40mA，0.1s，4kW |
|
Frequency |
≥40kHz |
|
KV adjusting range |
40kV～110kV, step adjustment is 1 kV |
|
mA adjusting range |
36mA～60mA |
|
mAs adjusting range |
1mAs-190mAs,shifted adjustment |
|
S adjusting range |
0.04s～3.2s |
|
X ray tube |
Toshiba tube Focus:0.5/1.6mm |
|
Size |
290×260×230 mm |
|
Weight |
18.8kg |
|
Accessories |
1.Remote control

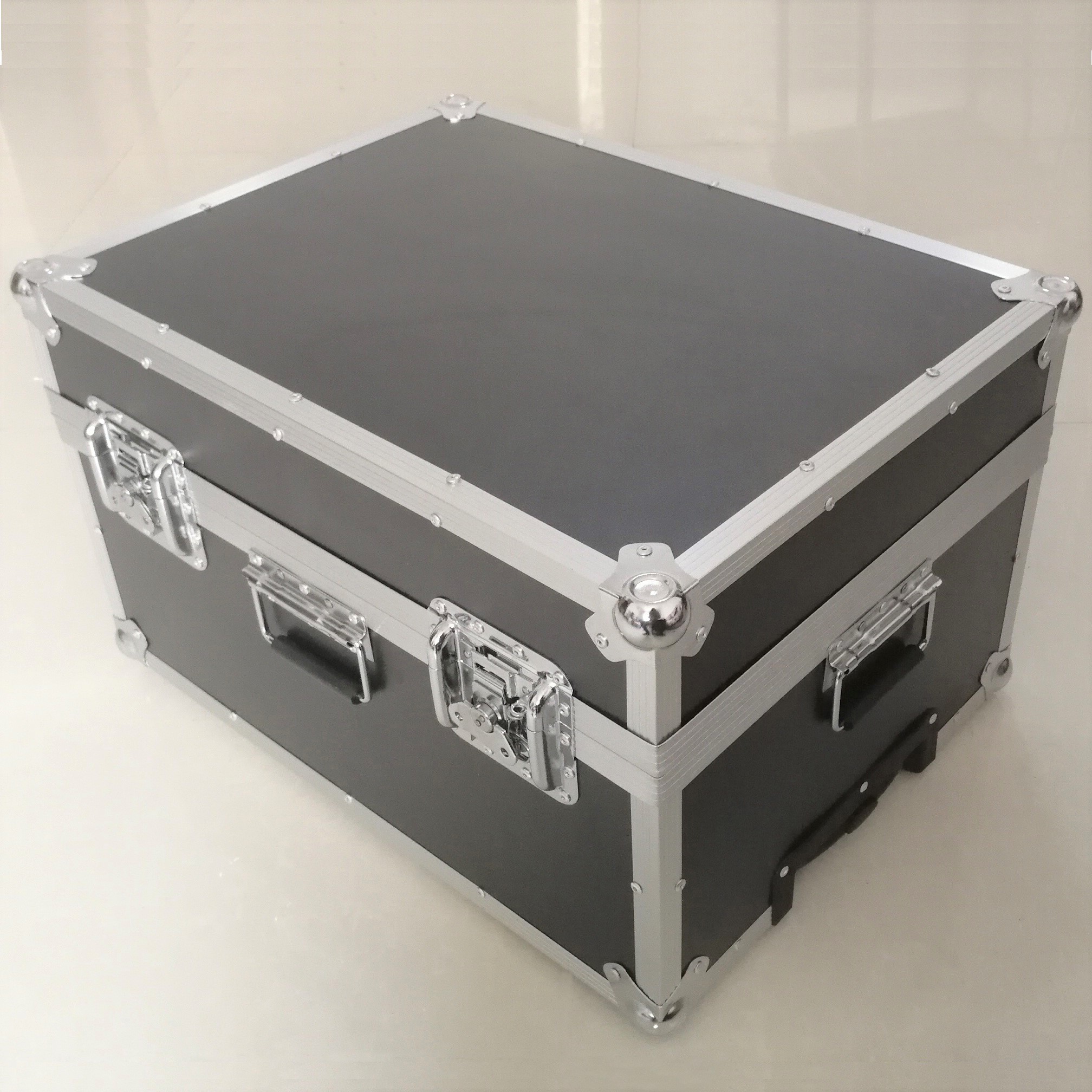

2.Aluminum box |
Specifications:
1. Deft and concise
2. Accuracy control method of simulation and double digital loops
3. 48 kinds of presupposed anatomy memory pattern choices

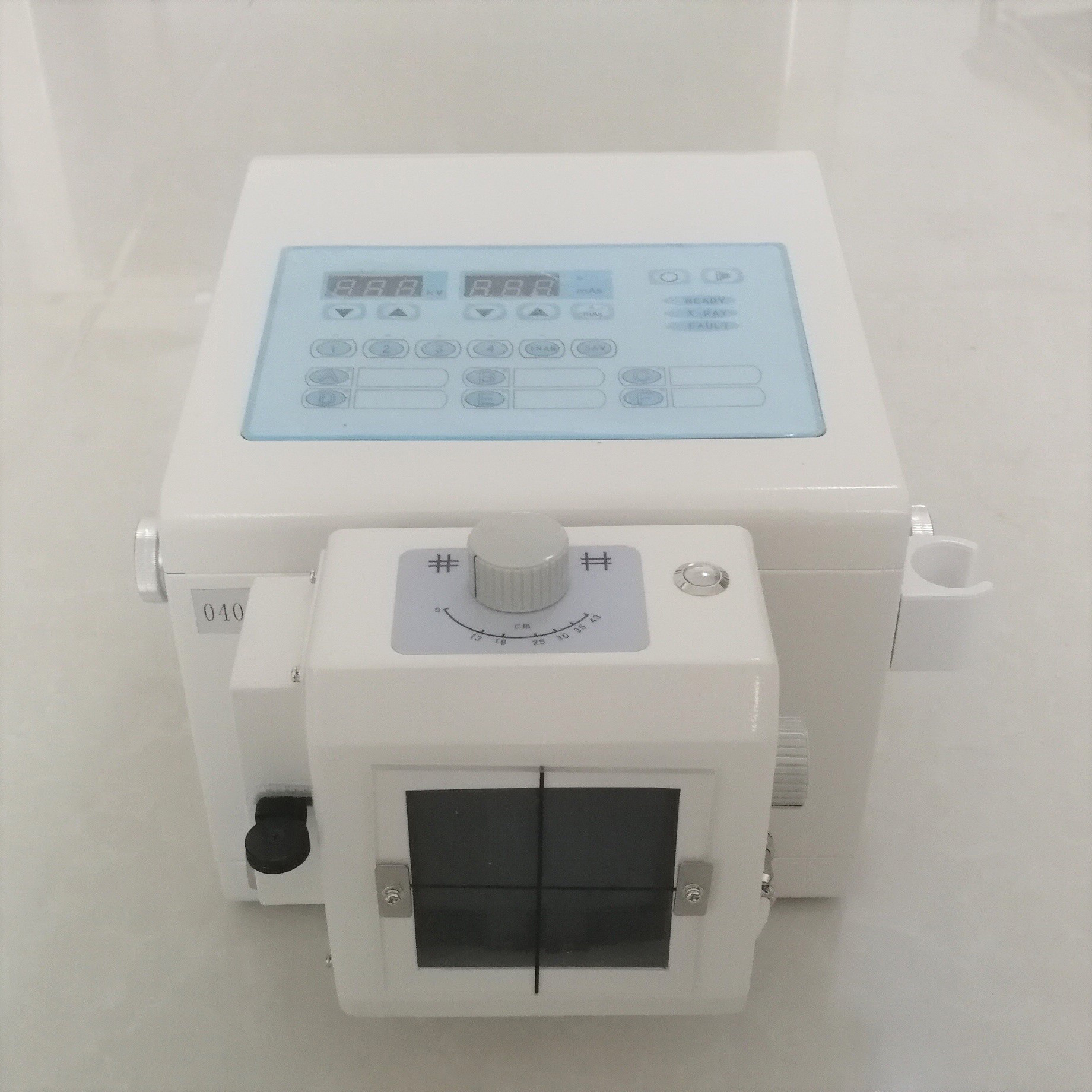

4. 6 periods of digital LED display
5. High precision control of tube voltage, tube current
6. Failure self-protection, self-diagnosis
