P4C Touch
- Best cost effective color Doppler ultrasound system
- P4C Touch offers acceptable color Doppler images, as well as beautiful design, powerful data management, and ideal portability.
- Standard configuration:
- P4C Touch main unit
- 15″ high resolution LED display
- 2 USB ports & 1 HDMI port & 1 S-video out port
- 3 transducer connectors
- One Key Optimization
- Measurement & calculation software packages
- Electronic convex array transducer: CA3.5MHz/R60
- Up to 120 minutes battery life
- Bag
- General Technical Descriptions
- Imaging mode: B, M, 2B, B/M, 4B, C, PW, Power, Dir Power, THI
- Gray scale: 256
- Display: 15’’ LED displayer
- Transducer frequency: 2 ~ 11MHz
- Transducer connector: 3 active
- Max scanning depth: 220mm
- Scanning angle (°) : from 60 to 120 (depending on transducers)
- Built-in Battery: AC and DC power supply mode, with high-capacity lithium battery
- Multi-application: Abdomen, obstetrics, gynecology, emergency treatment, and routine
- examination Inspection in troops, ambulance, teaching, family practice, and other special environment Reproductive service inspection in Department of Health, or Family Planning Department, etc.
- Digital Technology
- Wide-angle imaging
- Panoramic focusing technology
- Compatible with high and low speed blood
- Panoramic imaging
- Frequency composite
- Space compound
- Rolling M technology
- Real-time Dynamic Aperture
- Tissue Harmonic Imaging
- Functions
- Touch screen supported
- Cineloop: 334 frames movie playback stored
- Amplification: 10 times
- Sopt: One-key optimize
- Multi language： Supported
- DICOM DICOM3.0
- Print: Report print for text & graph & image

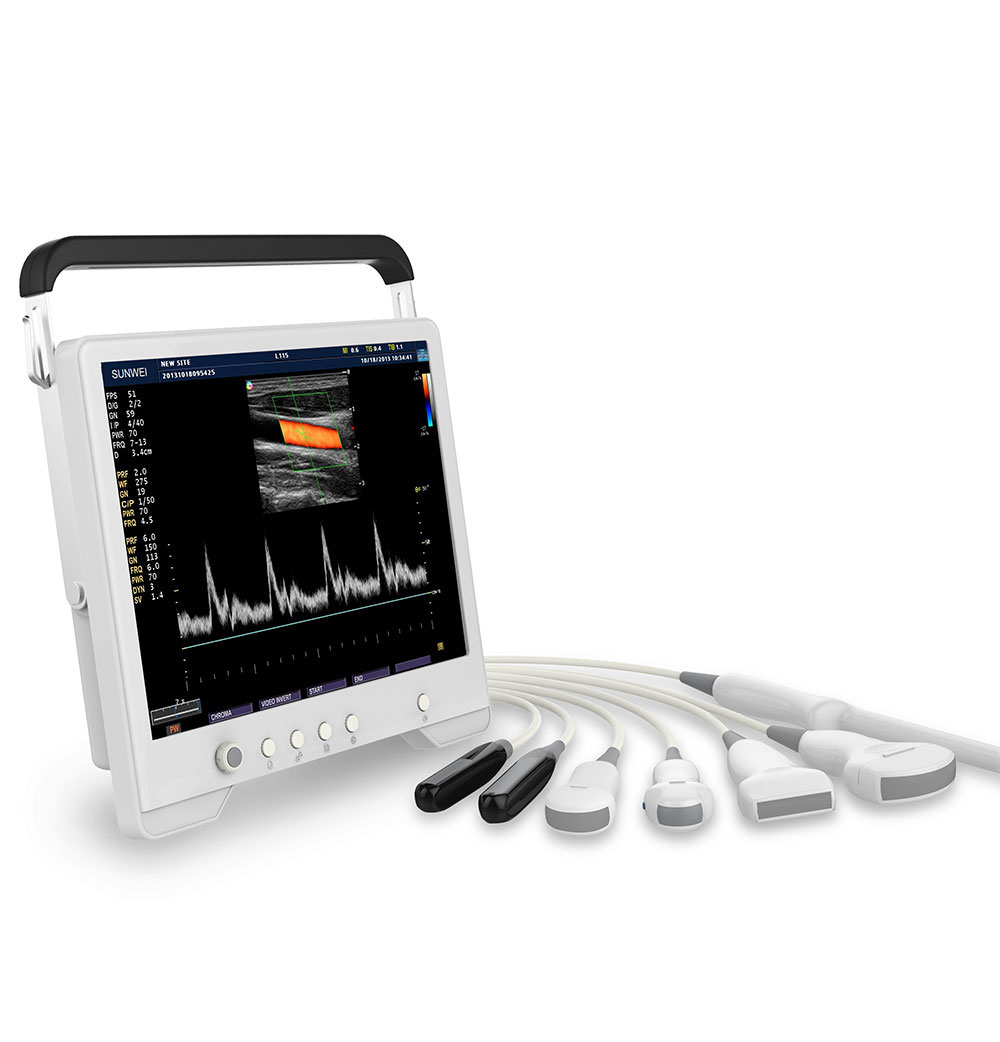

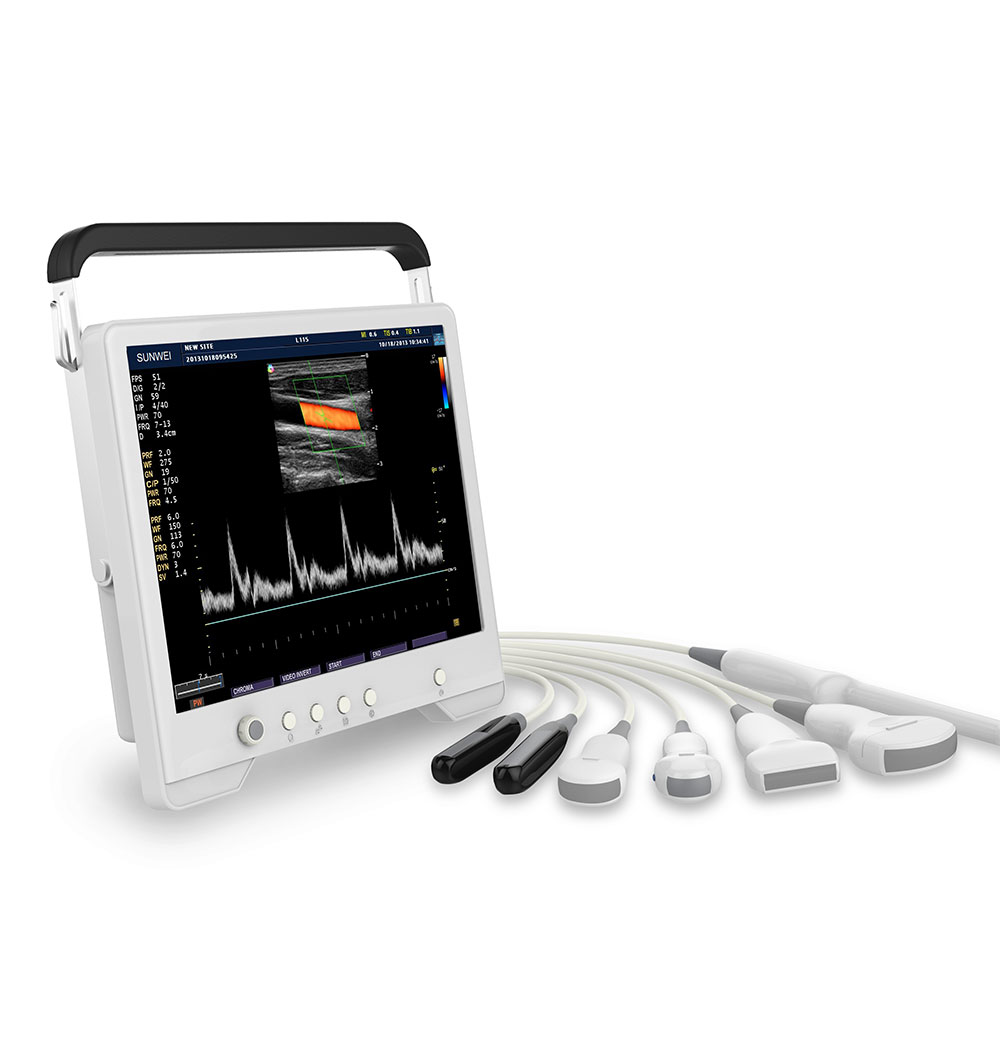

- P6
- An excellent HCU (Hand-Carried Ultrasound) System
- P6 is a High-end Color Doppler HCU (Hand-Carried Ultrasound). Based on SUNWEI’s leading digital ultrasound technology, TH-5100 offers superb 2D and premier doppler imaging modes such as CFM, CW, PW, CDE, CCD, HPRF. This flagship HCU can meet strictest requirements from cardiologists and it provides powerful image and data management including 4D imaging.
- Features & Advantages:
- Multi-application: abdomen, cardiology, OB/GYN, small parts, peripheral vessels, urology, rectum, pediatric, orthopedic, intra-operative ultrasound, ultrasound guided biopsy.
- Continuous high-precision DBF
- THI (Tissue Harmonic Imaging)
- TDI (Tissue Doppler Imaging)
- Auto IMT
- 3D/4D
- Panoramic Imaging
- Parallel Scanning
- Compound Imaging
- Trapezoidal Imaging
- PC Platform
- Transducer: multi-frequency transducer series
- Multi-language Interface: English, French, Spanish and Polish
- Printing: all PC and video printers supported
- ECG interface
- Standard Configuration:
- P6 main unit
- 15" high definition non-interlaced LCD monitor, special for medical imaging
- Max. 3000-frames of Cine Loop
- DICOM 3.0
- Measurement & calculation software packages
- Electronic convex array transducer: CA3.5MHz/R50 (2.0-5.5MHz)
- Electronic linear array transducer: LA7.5MHz/L40 (5.0-16.0MHz)
- 4D volume transducer : CLA4.5MHz (2.5-6.5MHz)
- Options:
- Electronic linear array transducer: LA7.5MHz/L50 (5.0-16.0MHz)
- Phased array transducer: PA2.5MHz (2.0-5.4MHz)
- Electronic endocavity transducer: EV6.5MHz/R10 (4.0-11.0MHz)
- Electronic micro-convex array transducer: MC3.5MHz/R20 (2.0-6.0MHz)
- Needle-guided brackets
- Footswitch
- Transducer Suitcase
- General Technical Descriptions
- Imaging mode: B
- B/B
- B+M
- Steer M
- Color M
- CW
- CFM
- PW
- PDI
- CDE
- CCD
- HPRF
- Gray scale: 256
- Transducer frequency: 2.0 ~ 16MHz
- Transducer connector: 2
- Imaging Technology: Continuous High-precision Digital Beam-former
- Dynamic Frequency Integration Imaging
- High-precision Dynamic Receiving Focus
- Super Wide-band Imaging Technology
- Self-adaptive Image Optimization Processing
- Multi-beam Imaging
- Automatic Flow Volume Analysis
- Compound Imaging
- Panoramic Imaging
- Self-adaptive Vascular Imaging
- Self-adaptive Doppler Imaging
- THI (Tissue Harmonic Imaging)
- TDI (Tissue Doppler Imaging)
